Which connection is used to download program to Siemens HMI

Created by: Reymond at: 7/9/2008 10:41 AM (13 Replies)

Rating (2)

Thanks 0

Result pages:: |; 1 | 2; |

14 Entries

Entries per page: 10 | all

7/9/2008 10:41 AM	Rate (0)

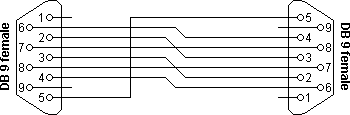

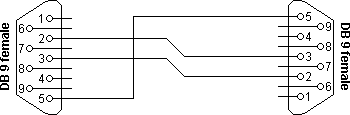

Reymond Posts: 112 Rating: (0)	Hi, I just want to ask which rs232 configuration i needed to download to seimens hmi devices especially to op73micro. Thank you very much in advance. Simple Null Modem without Handshaking Simple Null Modem with Loopback Handshaking Simple Null Modem with Partial Handshaking Simple Null Modem with Full Handshaking
Reymond Posts: 112 Rating: (0)
Suggestion To thank Quote Answer

7/9/2008 11:13 AM	Rate (1)
Wizard Diamond Expert Joined: 4/24/2006 Last visit: 9/14/2023 Posts: 8592 Rating: (1132)	Hello Begginer, You should use RS232/PPI multimaster cable or USB/PPI multimaster cable(6ES7 901-3DB30-0XA0 E-stand 05 or higher). They are RS232 - RS485 convertors. You can not use RS232 cable Best regards, Wizard

Suggestion To thank Quote Answer

7/9/2008 3:23 PM	Rate (0)
Reymond Posts: 112 Rating: (0)	Hi Wizard, Thank ypu again for your help, It's now getting clear. I found that we have ppi adapter here, can i used this part no. 6ES7 901-3CB30-0XA0, and do i need to set fifth switch to 1 so that it will work as ppi ( M master) or just let it 0 as ppi/freeport? Thank you very much again.
Reymond Posts: 112 Rating: (0)
Suggestion To thank Quote Answer

7/9/2008 3:43 PM	Rate (0)
Wizard Diamond Expert Joined: 4/24/2006 Last visit: 9/14/2023 Posts: 8592 Rating: (1132)	Dear Begginer, The fifth dipswitch must be set to zero position. See also this faq: http://support.automation.siemens.com/WW/view/en/23787153 Best regards, Wizard

Suggestion To thank Quote Answer

7/9/2008 9:00 PM	Rate (0)
Darius Platinum Expert Joined: 9/28/2005 Last visit: 8/22/2023 Posts: 2957 Rating: (242)	Hi, Wizard, Wizard Hello Begginer, You can not use RS232 cable Why? If you talk about OP73 micro, maybe.... I have downloaded OP 270 6" many times with RS232 null modem cable and had no problems at all. Beginner asked about HMI devices, so i thought you talk about all devices, so I think this should not apply to all devices.
	Best regards, Darius
Suggestion To thank Quote Answer

7/10/2008 8:47 AM	Rate (0)
Wizard Diamond Expert Joined: 4/24/2006 Last visit: 9/14/2023 Posts: 8592 Rating: (1132)	Hello Darius, There are some panels, which you can transfer using a RS232 cable. Have a look at following faq: http://support.automation.siemens.com/WW/view/en/19109408 They are mostly older panels. Because Begginer mentioned an OP73 Micro, I told that it isn't possible with that panel. Sorry if I wasn't clear enough. Best regards, Wizard

Suggestion To thank Quote Answer

7/10/2008 9:05 AM	Rate (0)
Darius Platinum Expert Joined: 9/28/2005 Last visit: 8/22/2023 Posts: 2957 Rating: (242)	Hi, Thats ok, I just wanted to make it clearer
	Best regards, Darius
Suggestion To thank Quote Answer

7/10/2008 10:45 AM	Rate (0)
Reymond Posts: 112 Rating: (0)	Hi, This one is strrange i don't see on transfer settings the rs232 ppi, what i saw there is only serial and usb/ppi. And the problem is what i have is rs232 mpi. Thanks, Begginer
Reymond Posts: 112 Rating: (0)
Suggestion To thank Quote Answer

7/10/2008 10:59 AM	Rate (0)
Reymond Posts: 112 Rating: (0)	Hi, One more question, can op73micro can communicate to s7314c?
Reymond Posts: 112 Rating: (0)
Suggestion To thank Quote Answer

7/10/2008 11:39 AM	Rate (0)
Wizard Diamond Expert Joined: 4/24/2006 Last visit: 9/14/2023 Posts: 8592 Rating: (1132)	Hello Begginer, You have RS232/MPI ? Begginer I found that we have ppi adapter here, can i used this part no. 6ES7 901-3CB30-0XA0 Well this article is a RS232 PC/PPI multimaster cable. You have to choose in WinCC flexible, transfer settings -> RS232 It is not possible to connect OP73 Micro to S7-300 CPU. Only S7-200. See faq: http://support.automation.siemens.com/WW/view/en/21120013 Best regards, Wizard

Suggestion To thank Quote Answer

|
